Metrisch schroefdraad

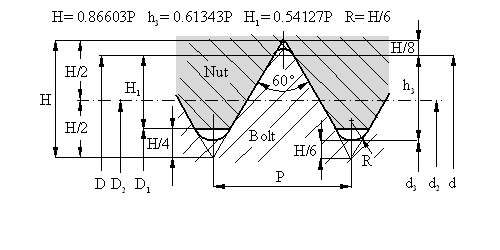

Metric screw threads ISO 724 (DIN 13 T1)
Nominale diameter	Spoed	Voer radius	Flank diameter	Kern diameter		Draadhoogte		Boor diameter
d = D	P	R	d2=D2	d3	D1	h3	H1	in mm
M 1.00	0.25	0.036	0.838	0.693	0.729	0.153	0.135	0.75
M 1.10	0.25	0.036	0.938	0.793	0.829	0.153	0.135	0.85
M 1.20	0.25	0.036	1.038	0.893	0.929	0.153	0.135	0.95
M 1.40	0.30	0.043	1.205	1.032	1.075	0.184	0.162	1.10
M 1.60	0.35	0.051	1.373	1.171	1.221	0.215	0.189	1.25
M 1.80	0.35	0.051	1.573	1.371	1.421	0.215	0.189	1.45
M 2.00	0.40	0.058	1.740	1.509	1.567	0.245	0.217	1.60
M 2.20	0.45	0.065	1.908	1.648	1.713	0.276	0.244	1.75
M 2.50	0.45	0.065	2.208	1.948	2.013	0.276	0.244	2.05
M 3.00	0.50	0.072	2.675	2.387	2.459	0.307	0.271	2.50
M 3.50	0.60	0.087	3.110	2.764	2.850	0.368	0.325	2.90
M 4.00	0.70	0.101	3.545	3.141	3.242	0.429	0.379	3.30
M 4.50	0.75	0.108	4.013	3.580	3.688	0.460	0.406	3.80
M 5.00	0.80	0.115	4.480	4.019	4.134	0.491	0.433	4.20
M 6.00	1.00	0.144	5.350	4.773	4.917	0.613	0.541	5.00
M 7.00	1.00	0.144	6.350	5.773	5.917	0.613	0.541	6.00
M 8.00	1.25	0.180	7.188	6.466	6.647	0.767	0.677	6.80
M 9.00	1.25	0.180	8.188	7.466	7.647	0.767	0.677	7.80
M 10.00	1.50	0.217	9.026	8.160	8.376	0.920	0.812	8.50
M 11.00	1.50	0.217	10.026	9.160	9.376	0.920	0.812	9.50
M 12.00	1.75	0.253	10.863	9.853	10.106	1.074	0.947	10.20
M 14.00	2.00	0.289	12.701	11.546	11.835	1.227	1.083	12.00
M 16.00	2.00	0.289	14.701	13.546	13.835	1.227	1.083	14.00
M 18.00	2.50	0.361	16.376	14.933	15.394	1.534	1.353	15.50
M 20.00	2.50	0.361	18.376	16.933	17.294	1.534	1.353	17.50
M 22.00	2.50	0.361	20.376	18.933	19.294	1.534	1.353	19.50
M 24.00	3.00	0.433	22.051	20.319	20.752	1.840	1.624	21.00
M 27.00	3.00	0.433	25.051	23.319	23.752	1.840	1.624	24.00
M 30.00	3.50	0.505	27.727	25.706	26.211	2.147	1.894	26.50
M 33.00	3.50	0.505	30.727	28.706	29.211	2.147	1.894	29.50
M 36.00	4.00	0.577	33.402	31.093	31.670	2.454	2.165	32.00
M 39.00	4.00	0.577	36.402	34.093	34.670	2.454	2.165	35.00
M 42.00	4.50	0.650	39.077	36.479	37.129	2.760	2.436	37.50
M 45.00	4.50	0.650	42.077	39.479	40.129	2.760	2.436	40.50
M 48.00	5.00	0.722	44.752	41.866	42.857	3.067	2.706	43.00
M 52.00	5.00	0.722	48.752	45.866	46.587	3.067	2.706	47.00
M 56.00	5.50	0.794	52.428	49.252	50.046	3.374	2.977	50.50
M 60.00	5.50	0.794	56.428	53.252	54.046	3.374	2.977	54.50
M 64.00	6.00	0.866	60.103	56.639	57.505	3.681	3.248	58.00
M 68.00	6.00	0.866	64.103	60.639	61.505	3.681	3.248	62.00
Nominale diameter	Spoed	Voer radius	Flank diameter	Kern diameter		Draadhoogte		Boor diameter
d = D	P	R	d2=D2	d3	D1	h3	H1	in mm

Metrisch fijne spoed

Nominale diameter	Spoed	Voer radius	Flank diameter	Kern diameter		Draadhoogte		Boor diameter
d = D	P	R	d2=D2	d3	D1	h3	H1	in mm
M1.0 × 0.2	0.20	0.029	0.870	0.755	0.783	0.123	0.108	0.80
M1.1 × 0.2	0.20	0.029	0.970	0.855	0.883	0.123	0.108	0.90
M1.2 × 0.2	0.20	0.029	1.070	0.955	0.983	0.123	0.108	1.00
M1.4 × 0.2	0.20	0.029	1.270	1.155	1.183	0.123	0.108	1.20
M1.6 × 0.2	0.20	0.029	1.470	1.355	1.383	0.123	0.108	1.40
M1.8 × 0.2	0.20	0.029	1.670	1.555	1.583	0.123	0.108	1.60
M2.0 × 0.25	0.25	0.036	1.838	1.693	1.729	0.153	0.135	1.75
M2.2 × 0.25	0.25	0.036	2.038	1.893	1.929	0.153	0.135	1.95
M2.5 × 0.35	0.35	0.051	2.273	2.071	2.121	0.215	0.189	2.10
M3 × 0.35	0.35	0.051	2.773	2.571	2.621	0.215	0.189	2.60
M3.5 × 0.35	0.35	0.051	3.273	3.071	3.121	0.215	0.189	3.10
M4 × 0.5	0.50	0.072	3.675	3.387	3.459	0.307	0.271	3.50
M4.5 × 0.5	0.50	0.072	4.175	3.887	3.959	0.307	0.271	4.00
M5 × 0.5	0.50	0.072	4.675	4.387	4.459	0.307	0.271	4.50
M5.5 × 0.5	0.50	0.072	5.175	4.887	4.959	0.307	0.271	5.00
M6 × 0.75	0.75	0.108	5.513	5.080	5.188	0.460	0.406	5.20
M7 × 0.75	0.75	0.108	6.513	6.080	6.188	0.460	0.406	6.20
M8 × 0.75	0.75	0.108	7.513	7.080	7.188	0.460	0.406	7.20
M8 × 1.0	1.00	0.144	7.350	6.773	6.917	0.613	0.541	7.00
M9 × 0.75	0.75	0.108	8.513	8.080	8.188	0.460	0.406	8.20
M9 × 1.0	1.00	0.144	8.350	7.773	7.917	0.613	0.541	8.00
M10 × 0.75	0.75	0.108	9.513	9.080	9.188	0.460	0.406	9.20
M10 × 1.0	1.00	0.144	9.350	8.773	8.917	0.613	0.541	9.00
M10 × 1.25	1.25	0.180	9.188	8.466	8.647	0.767	0.677	8.80
M11 × 0.75	0.75	0.108	10.513	10.080	10.188	0.460	0.406	10.20
M11 × 1.0	1.00	0.144	10.350	9.773	9.917	0.613	0.541	10.00
M12 × 1.0	1.00	0.144	11.350	10.773	10.917	0.613	0.541	11.00
M12 × 1.25	1.25	0.180	11.188	10.466	10.647	0.767	0.677	10.80
M12 × 1.5	1.50	0.217	11.026	10.160	10.376	0.920	0.812	10.50
M14 × 1.0	1.00	0.144	13.350	12.773	12.917	0.613	0.541	13.00
M14 × 1.25	1.25	0.180	13.188	12.466	12.647	0.767	0.677	12.80
M14 × 1.5	1.50	0.217	13.026	12.160	12.376	0.920	0.812	12.50
Nominale diameter	Spoed	Voer radius	Flank diameter	Kern diameter		Draadhoogte		Boor diameter
d = D	P	R	d2=D2	d3	D1	h3	H1	in mm
M15 × 1.0	1.00	0.144	14.350	13.773	13.917	0.613	0.541	14.00
M15 × 1.5	1.50	0.217	14.026	13.160	13.376	0.920	0.812	13.50
M16 × 1.0	1.00	0.144	15.350	14.773	14.917	0.613	0.541	15.00
M16 × 1.5	1.50	0.217	15.026	14.160	14.376	0.920	0.812	14.50
M17 × 1.0	1.00	0.144	16.350	15.773	15.917	0.613	0.541	16.00
M17 × 1.5	1.50	0.217	16.026	15.160	15.376	0.920	0.812	15.50
M18 × 1.0	1.00	0.144	17.350	16.773	16.917	0.613	0.541	17.00
M18 × 1.5	1.50	0.217	17.026	16.160	16.376	0.920	0.812	16.50
M18 × 2.0	2.00	0.289	16.701	15.546	15.835	1.227	1.083	16.00
M20 × 1.0	1.00	0.144	19.350	18.773	18.917	0.613	0.541	19.00
M20 × 1.5	1.50	0.217	19.026	18.160	18.376	0.920	0.812	18.50
M20 × 2.0	2.00	0.289	18.701	17.546	17.835	1.227	1.083	18.00
M22 × 1.0	1.00	0.144	21.350	20.773	20.917	0.613	0.541	21.00
M22 × 1.5	1.50	0.217	21.026	20.160	20.376	0.920	0.812	20.50
M22 × 2.0	2.00	0.289	20.701	19.546	19.835	1.227	1.083	20.00
M24 × 1.0	1.00	0.144	23.350	22.773	22.917	0.613	0.541	23.00
M24 × 1.5	1.50	0.217	23.026	22.160	22.376	0.920	0.812	22.50
M24 × 2.0	2.00	0.289	22.701	21.546	21.835	1.227	1.083	22.00
M25 × 1.0	1.00	0.144	24.350	23.773	23.917	0.613	0.541	24.00
M25 × 1.5	1.50	0.217	24.026	23.160	23.376	0.920	0.812	23.50
M25 × 2.0	2.00	0.289	23.701	22.546	22.835	1.227	1.083	23.00
M27 × 1.0	1.00	0.144	26.350	25.773	25.917	0.613	0.541	26.00
M27 × 1.5	1.50	0.217	26.026	25.160	25.376	0.920	0.812	25.50
M27 × 2.0	2.00	0.289	25.701	24.546	24.835	1.227	1.083	25.00
M28 × 1.0	1.00	0.144	27.350	26.773	26.917	0.613	0.541	27.00
M28 × 1.5	1.50	0.217	27.026	26.160	26.376	0.920	0.812	26.50
M28 × 2.0	2.00	0.289	26.701	25.546	25.835	1.227	1.083	26.00
M30 × 1.0	1.00	0.144	29.350	28.773	28.917	0.613	0.541	29.00
M30 × 1.5	1.50	0.217	29.026	28.160	28.376	0.920	0.812	28.50
M30 × 2.0	2.00	0.289	28.701	27.546	27.835	1.227	1.083	28.00
M30 × 3.0	3.00	0.433	28.051	26.319	26.752	1.840	1.624	27.00
Nominale diameter	Spoed	Voer radius	Flank diameter	Kern diameter		Draadhoogte		Boor diameter
d = D	P	R	d2=D2	d3	D1	h3	H1	in mm
M32 × 1.5	1.50	0.217	31.026	30.160	30.376	0.920	0.812	30.50
M32 × 2.0	2.00	0.289	30.701	29.546	29.835	1.227	1.083	30.00
M33 × 1.5	1.50	0.217	32.026	31.160	31.376	0.920	0.812	31.50
M33 × 2.0	2.00	0.289	31.701	30.546	30.835	1.227	1.083	31.00
M33 × 3.0	3.00	0.433	31.051	29.319	29.752	1.840	1.624	30.00
M35 × 1.5	1.50	0.217	34.026	33.160	33.376	0.920	0.812	33.50
M35 × 2.0	2.00	0.289	33.701	32.546	32.835	1.227	1.083	33.00
M36 × 1.5	1.50	0.217	35.026	34.160	34.376	0.920	0.812	34.50
M36 × 2.0	2.00	0.289	34.701	33.546	33.835	1.227	1.083	34.00
M36 × 3.0	3.00	0.433	34.051	32.319	32.752	1.840	1.624	33.00
M39 × 1.5	1.50	0.217	38.026	37.160	37.376	0.920	0.812	37.50
M39 × 2.0	2.00	0.289	37.701	36.546	36.835	1.227	1.083	37.00
M39 × 3.0	3.00	0.433	37.051	35.319	35.752	1.840	1.624	36.00
M40 × 1.5	1.50	0.217	39.026	38.160	38.376	0.920	0.812	38.50
M40 × 2.0	2.00	0.289	38.701	37.546	37.835	1.227	1.083	38.00
M40 × 3.0	3.00	0.433	38.051	36.619	36.752	1.840	1.624	37.00
M42 × 1.5	1.50	0.217	41.026	40.160	40.376	0.920	0.812	40.50
M42 × 2.0	2.00	0.289	40.701	39.546	39.835	1.227	1.083	40.00
M42 × 3.0	3.00	0.433	40.051	38.319	38.752	1.840	1.624	39.00
M42 × 4.0	4.00	0.577	39.402	37.093	37.670	2.454	2.165	38.00
M45 × 1.5	1.50	0.217	44.026	43.160	43.376	0.920	0.812	43.50
M45 × 2.0	2.00	0.289	43.701	42.546	42.835	1.227	1.083	43.00
M45 × 3.0	3.00	0.433	43.051	41.319	41.752	1.840	1.624	42.00
M45 × 4.0	4.00	0.577	42.402	40.093	40.670	2.454	2.165	41.00
M48 × 1.5	1.50	0.217	47.026	46.160	46.376	0.920	0.812	46.50
M48 × 2.0	2.00	0.289	46.701	45.546	45.835	1.227	1.083	46.00
M48 × 3.0	3.00	0.433	46.051	44.319	44.752	1.840	1.624	45.00
M48 × 4.0	4.00	0.577	45.402	43.093	43.670	2.454	2.165	44.00
M50 × 1.5	1.50	0.217	49.026	48.160	48.376	0.920	0.812	48.50
M50 × 2.0	2.00	0.289	48.701	47.546	47.835	1.227	1.083	48.00
M50 × 3.0	3.00	0.433	48.051	46.319	46.752	1.840	1.624	47.00
Nominale diameter	Spoed	Voer radius	Flank diameter	Kern diameter		Draadhoogte		Boor diameter
d = D	P	R	d2=D2	d3	D1	h3	H1	in mm
M52 × 1.5	1.50	0.217	51.026	50.160	50.376	0.920	0.812	50.50
M52 × 2.0	2.00	0.289	50.701	49.546	49.835	1.227	1.083	50.00
M52 × 3.0	3.00	0.433	50.051	48.319	48.752	1.840	1.624	49.00
M52 × 4.0	4.00	0.577	49.402	47.093	47.670	2.454	2.165	48.00
M55 × 1.5	1.50	0.217	54.026	53.160	53.376	0.920	0.812	53.50
M55 × 2.0	2.00	0.289	53.701	52.546	52.835	1.227	1.083	53.00
M55 × 3.0	3.00	0.433	53.051	51.319	51.752	1.840	1.624	52.00
M55 × 4.0	4.00	0.577	52.402	50.093	50.670	2.454	2.165	51.00
M56 × 1.5	1.50	0.217	55.026	54.160	54.376	0.920	0.812	54.50
M56 × 2.0	2.00	0.289	54.701	43.546	53.835	1.227	1.083	54.00
M56 × 3.0	3.00	0.433	54.051	52.319	52.752	1.840	1.624	53.00
M56 × 4.0	4.00	0.577	53.402	51.903	51.670	2.454	2.165	52.00
M58 × 1.5	1.50	0.217	57.026	56.160	56.376	0.920	0.812	56.50
M58 × 2.0	2.00	0.289	56.701	55.546	55.835	1.227	1.083	56.00
M58 × 3.0	3.00	0.433	56.051	54.319	54.752	1.840	1.624	55.00
M58 × 4.0	4.00	0.577	55.402	53.093	53.670	2.454	2.165	54.00
M60 × 1.5	1.50	0.217	59.026	58.160	58.376	0.920	0.812	58.50
M60 × 2.0	2.00	0.289	58.701	57.546	57.835	1.227	1.083	58.00
M60 × 3.0	3.00	0.433	58.051	56.319	56.752	1.840	1.624	57.00
M60 × 4.0	4.00	0.577	57.402	55.093	55.670	2.454	2.165	56.00
M62 × 1.5	1.50	0.217	61.026	60.160	60.376	0.920	0.812	60.50
M62 × 2.0	2.00	0.289	60.701	59.546	59.835	1.227	1.083	60.00
M62 × 3.0	3.00	0.433	60.051	58.319	58.752	1.840	1.624	59.00
M62 × 4.0	4.00	0.577	59.402	57.093	57.670	2.454	2.165	58.00
M64 × 1.5	1.50	0.217	63.026	62.160	62.376	0.920	0.812	62.50
M64 × 2.0	2.00	0.289	62.701	61.546	61.835	1.227	1.083	62.00
M64 × 3.0	3.00	0.433	62.051	60.319	60.752	1.840	1.624	61.00
M64 × 4.0	4.00	0.577	61.402	59.093	59.670	2.454	2.165	60.00
M65 × 1.5	1.50	0.217	64.026	63.160	63.376	0.920	0.812	63.50
M65 × 2.0	2.00	0.289	63.789	62.546	62.835	1.227	1.083	63.00
M65 × 3.0	3.00	0.433	63.051	61.319	61.752	1.840	1.624	62.00
M65 × 4.0	4.00	0.577	62.402	60.093	60.670	2.454	2.165	61.00
Nominale diameter	Spoed	Voer radius	Flank diameter	Kern diameter		Draadhoogte		Boor diameter
d = D	P	R	d2=D2	d3	D1	h3	H1	in mm
M68 × 1.5	1.50	0.217	67.026	66.160	66.376	0.920	0.812	66.50
M68 × 2.0	2.00	0.289	66.701	65.546	65.835	1.227	1.083	66.00
M68 × 3.0	3.00	0.433	66.051	64.319	64.752	1.840	1.624	65.00
M68 × 4.0	4.00	0.577	65.402	63.093	63.670	2.454	2.165	64.00
M70 × 1.5	1.50	0.217	69.026	68.160	68.376	0.920	0.812	68.50
M70 × 2.0	2.00	0.289	68.201	67.546	67.835	1.227	1.083	68.00
M70 × 3.0	3.00	0.433	68.051	66.319	66.752	1.840	1.624	67.00
M70 × 4.0	4.00	0.577	67.402	65.093	65.670	2.454	2.165	66.00
M70 × 6.0	6.00	0.866	66.103	62.639	63.505	3.681	3.248	64.00
M72 × 1.5	1.50	0.217	71.026	70.160	70.376	0.920	0.812	70.50
M72 × 2.0	2.00	0.289	70.701	69.546	69.835	1.227	1.083	70.00
M72 × 3.0	3.00	0.433	70.051	68.319	68.752	1.840	1.624	69.00
M72 × 4.0	4.00	0.577	69.402	67.093	67.670	2.454	2.165	68.00
M72 × 6.0	6.00	0.866	68.103	64.639	65.505	3.681	3.248	66.00
M75 × 1.5	1.50	0.217	74.026	73.160	73.376	0.920	0.812	73.50
M75 × 2.0	2.00	0.289	73.701	72.546	72.835	1.227	1.083	73.00
M75 × 3.0	3.00	0.433	73.051	71.319	71.752	1.840	1.624	72.00
M75 × 4.0	4.00	0.577	72.402	70.093	70.670	2.454	2.165	71.00
M75 × 6.0	6.00	0.866	71.103	67.639	68.505	3.681	3.248	69.00
M76 × 1.5	1.50	0.217	75.026	74.160	74.376	0.920	0.812	74.50
M76 × 2.0	2.00	0.289	74.701	73.546	73.835	1.227	1.083	74.00
M76 × 3.0	3.00	0.433	74.051	72.319	72.752	1.840	1.624	73.00
M76 × 4.0	4.00	0.577	73.402	71.093	71.670	2.454	2.165	72.00
M76 × 6.0	6.00	0.866	72.103	68.639	69.505	3.681	3.248	70.00
M80 × 1.5	1.50	0.217	79.026	78.160	78.376	0.920	0.812	78.50
M80 × 2.0	2.00	0.289	78.701	77.546	77.835	1.227	1.083	78.00
M80 × 3.0	3.00	0.433	78.051	76.319	76.752	1.840	1.624	77.00
M80 × 4.0	4.00	0.577	77.402	75.093	75.670	2.454	2.165	76.00
M80 × 6.0	6.00	0.866	76.103	72.639	73.505	3.681	3.248	74.00
M85 × 2.0	2.00	0.289	83.701	82.546	82.535	1.227	1.083	83.00
M85 × 3.0	3.00	0.433	83.051	81.319	81.752	1.840	1.624	82.00
M85 × 4.0	4.00	0.577	82.402	80.093	80.670	2.454	2.165	81.00
M85 × 6.0	6.00	0.866	81.103	77.639	78.505	3.681	3.248	79.00
Nominale diameter	Spoed	Voer radius	Flank diameter	Kern diameter		Draadhoogte		Boor diameter
d = D	P	R	d2=D2	d3	D1	h3	H1	in mm
M90 × 2.0	2.00	0.289	88.701	87.546	87.835	1.227	1.083	88.00
M90 × 3.0	3.00	0.433	88.051	86.319	86.752	1.840	1.624	87.00
M90 × 4.0	4.00	0.577	87.402	85.093	85.670	2.454	2.165	86.00
M90 × 6.0	6.00	0.866	86.103	82.639	83.505	3.681	0.328	84.00
M95 × 2.0	2.00	0.289	93.701	92.546	92.835	1.227	1.083	93.00
M95 × 3.0	3.00	0.433	93.051	91.319	91.752	1.840	1.624	92.00
M95 × 4.0	4.00	0.577	92.402	90.093	90.670	2.454	2.165	91.00
M95 × 6.0	6.00	0.866	91.103	87.639	88.505	3.681	3.248	89.00
M100 × 2.0	2.00	0.289	98.701	97.546	97.835	1.227	1.083	98.00
M100 × 3.0	3.00	0.433	98.051	96.319	96.752	1.840	1.624	97.00
M100 × 4.0	4.00	0.577	97.402	95.093	95.670	2.454	2.165	96.00
M100 × 6.0	6.00	0.866	96.103	92.639	93.505	3.681	3.248	94.00
