Arduino UNO is de nieuwste versie van het ontwikkelbord en de opvolger van Arduino Duemilanove. De UNO heeft een andere USB-to-Serialchip in zich dan de vorige versies, namelijk de ATmega8U2 USB-naar-TTL. Het heeft net als zijn voorgangers een USB-B-connectie en heeft verder een bootloader die slechts 0,5 kB van het totale geheugen gebruikt, de voorganger gebruikte 2,0 kB.

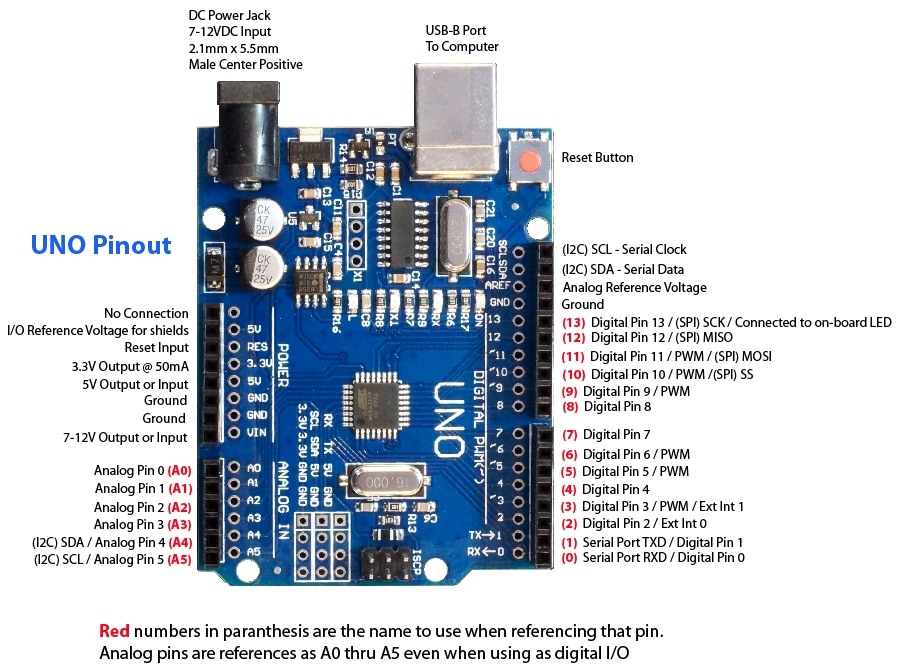

Microcontroller | ATmega328P |
Operating Voltage | 5 V |
Recommended Input Voltage | 7 - 12 V |
Input Voltage Limits | 6 - 20 V |
Analog Input Pins | 6 (A0 - A5) |
Digital I/O Pins | 14 (Out of which 6 provide PWM output) |
DC Current on I/O Pins | 40 mA |
DC Current on 3.3 V Pin | 50 mA |
Flash Memory | 32 KB (0.5 KB is used for Bootloader) |
SRAM | 2 KB |
EEPROM | 1 KB |
Frequency (Clock Speed) | 16 MHz |
Pin Category | Pin Name | Details |
---|---|---|
Power | Vin, 3.3 V, 5 V, GND | Vin: Input voltage to Arduino when using an external power source. 5V: Regulated power supply used to power microcontroller and other components on the board. 3.3V: 3.3V supply generated by on-board voltage regulator. Maximum current draw is 50 mA. GND: ground pins. |
Reset | Reset | Resets the microcontroller. |
Analog Pins | A0 - A5 | Used to provide analog input in the range of 0-5 V |
Input/Output Pins | Digital Pins 0 - 13 | Can be used as input or output pins. |
Serial | 0(Rx), 1(Tx) | Used to receive and transmit TTL serial data. |
External Interrupts | 2, 3 | To trigger an interrupt. |
PWM | 3, 5, 6, 9, 11 | Provides 8-bit PWM output. |
SPI | 10 (SS), 11 (MOSI), 12 (MISO) and 13 (SCK) | Used for SPI communication. |
Inbuilt LED | 13 | To turn on the inbuilt LED. |
TWI | A4 (SDA), A5 (SCL) | Used for TWI communication. |
AREF | AREF | To provide reference voltage for input voltage. |

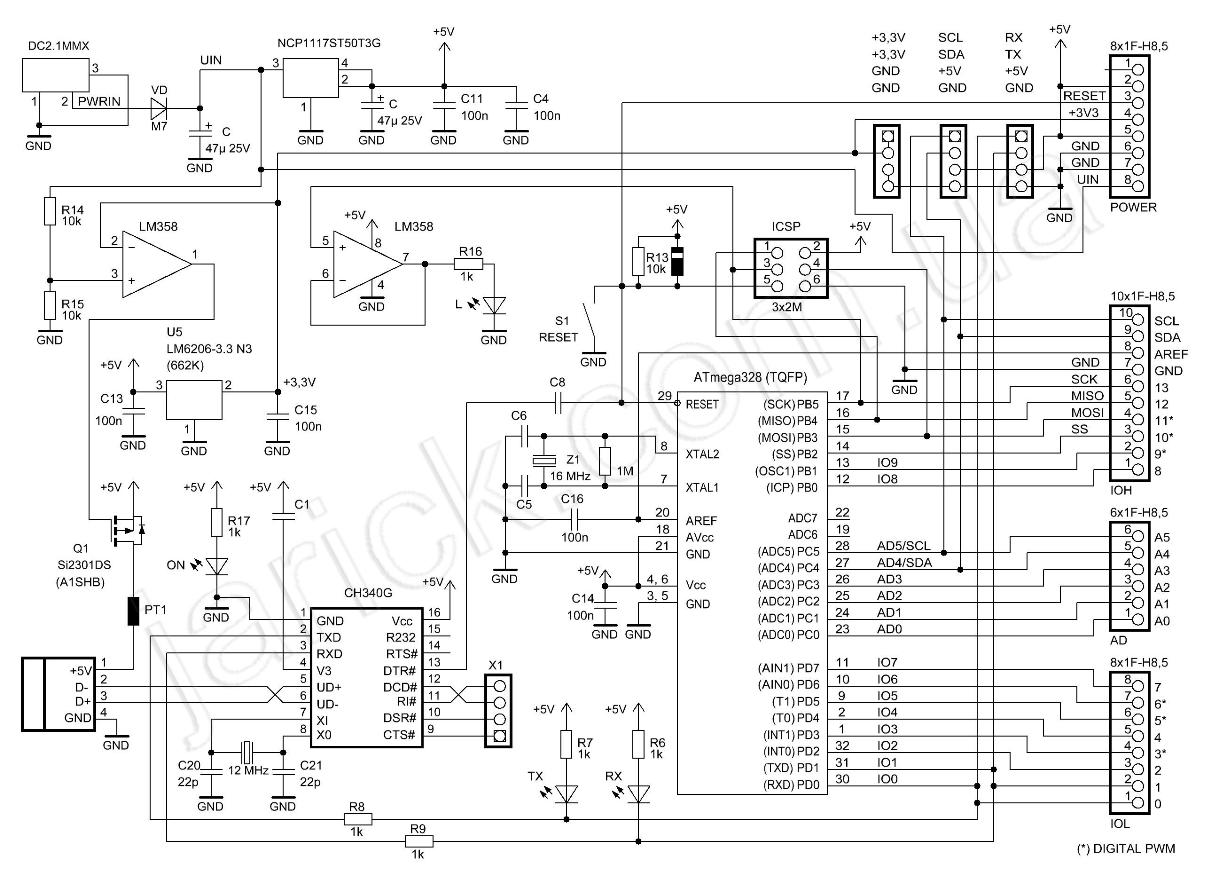

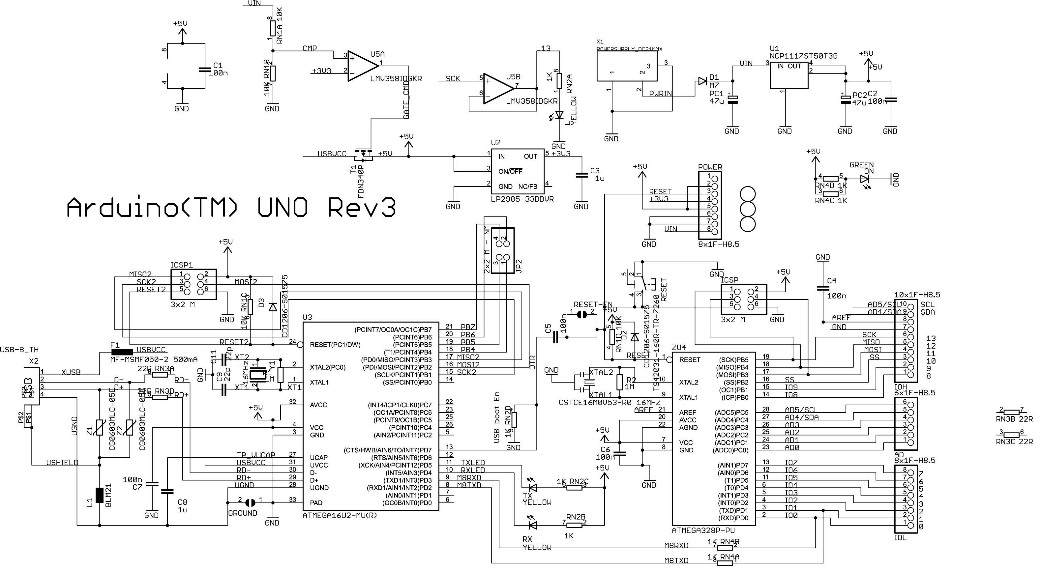

Schema Uno clone.

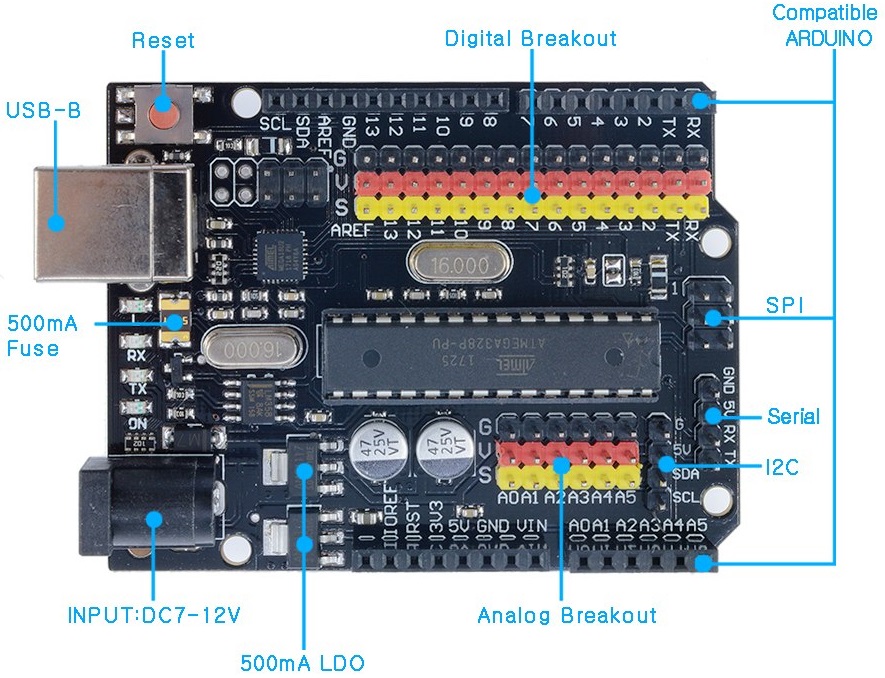

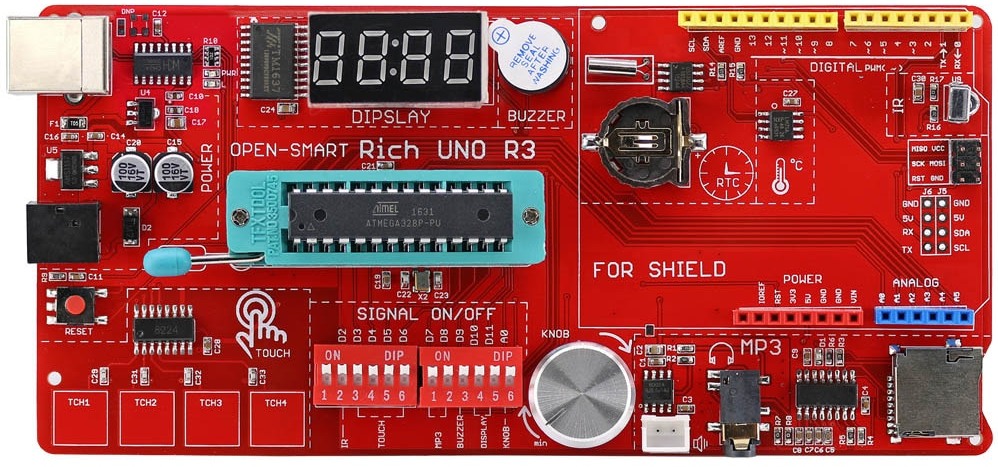

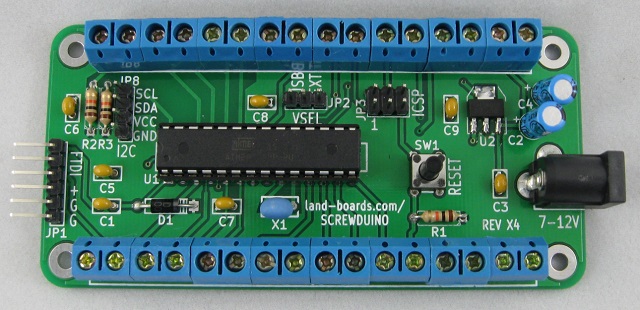

Uno gecombineerd met sensor aansluitingen.

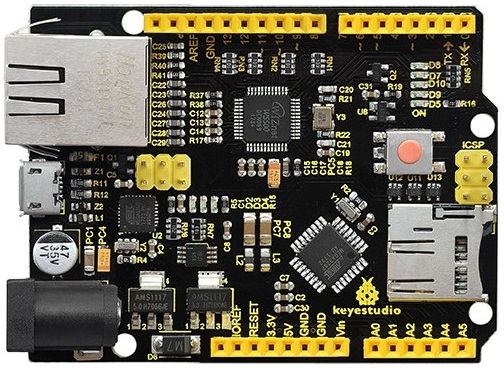

Keyestudio W5500 ethernet develoment board.

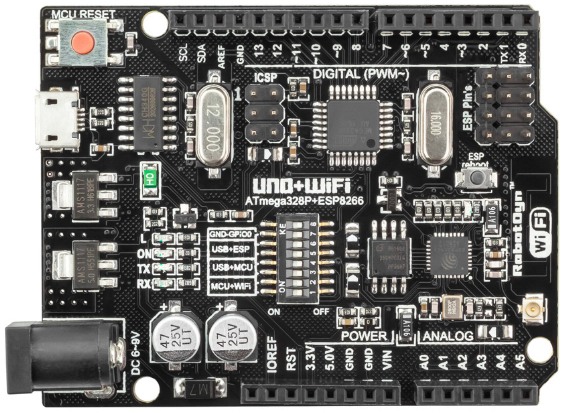

Uno + wifi.

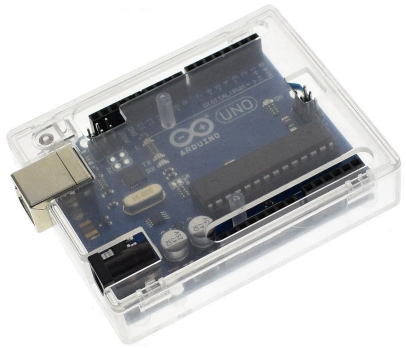

Acryl case met toegang voor shields.

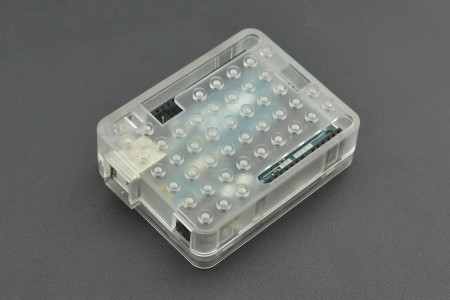

Lego compatible case.
