Transistors
| Type | PNP = P NPN = N |
UCEO (volt) 0 = ≤ 20 00 = 25-40 000 = 45-60 0000 = 65-80 00000 = ≥ 85 |
Ic(max) (mA) 0 = ≤ 50 00 = 55-100 000 = 105-400 0000 = 405-2 A 00000 = ≥ 2 A |
Pmax (mW) niet gekoeld: 0 = ≤ 300 00 = 305-1000 gekoeld: 00* = 1-10 W 00** = 10-35 W 00*** = ≥ 40 W |
hFE(min) 0 = ≤ 20 00 = 25-50 000 = 55-120 0000 = ≥ 125 |

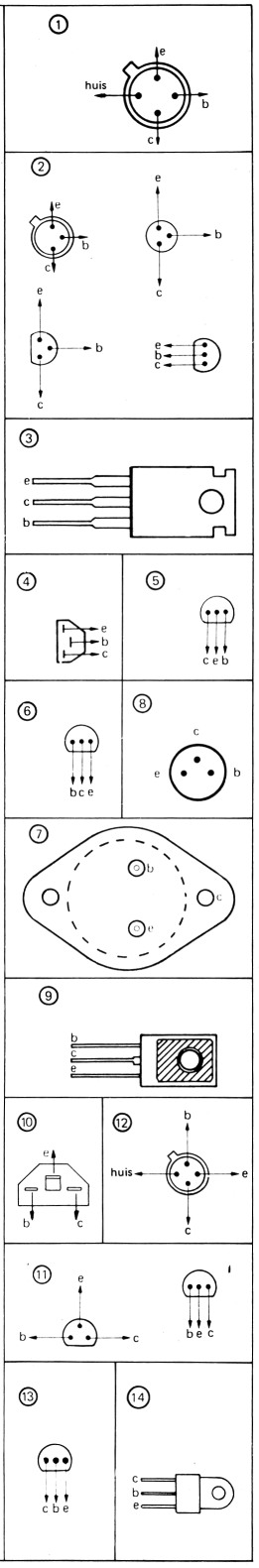

behuizing | opmerkingen |
|---|---|---|---|---|---|---|---|
| TUN | N | 0 | 00 | 0 | 000 | ||
| TUP | P | 0 | 00 | 0 | 000 | ||
| AC126 | P | 0 | 00 | 00 | 0000 | 2 | |
| AF239 | P | 0 | 0 | 0 | 0 | 1 | geaarde basis: fT = 700 MHz |
| BC107 | N | 000 | 00 | 0 | 000 | 2 | |
| BC108 | N | 0 | 00 | 0 | 000 | 2 | |
| BC109 | N | 0 | 00 | 0 | 0000 | 2 | low noise |
| BC140 | N | 00 | 0000 | 00* | 00 | 2 | |
| BC141 | N | 000 | 0000 | 00* | 00 | 2 | |
| BC160 | P | 00 | 0000 | 00* | 00 | 2 | |
| BC161 | P | 000 | 0000 | 00* | 00 | 2 | |
| BC182 | N | 000 | 000 | 0 | 0000 | 2 | |
| BC212 | P | 000 | 000 | 0 | 000 | 2 | |
| BC546 | N | 0000 | 00 | 00 | 0000 | 2 | |
| BC556 | P | 0000 | 00 | 00 | 000 | 2 | |
| BD106 | N | 00 | 00000 | 00** | 00 | 7 | |
| BD130 | N | 000 | 00000 | 00*** | 0 | 7 | |
| BD132 | P | 000 | 00000 | 00** | 00 | 9 | |
| BD137 | N | 000 | 0000 | 00* | 00 | 9 | |
| BD138 | P | 000 | 0000 | 00* | 00 | 9 | |
| BD139 | N | 0000 | 0000 | 00* | 00 | 9 | |
| BD140 | P | 0000 | 0000 | 00* | 00 | 9 | |
| BDY20 | N | 000 | 00000 | 00*** | 0 | 7 | |
| BF180 | N | 0 | 0 | 0 | 0 | 1 | geaarde basis: fT = 675 MHz |
| BF185 | N | 0 | 0 | 0 | 00 | 12 | geaarde basis: fT = 220 MHz |
| BF194 | N | 0 | 0 | 0 | 000 | 10 | geaarde emitter: fT = 260 MHz |
| BF195 | N | 0 | 0 | 0 | 000 | 10 | geaarde emitter: fT = 200 MHz |
| BF199 | N | 00 | 0 | 00 | 000 | 11 | geaarde emitter: fT = 550 MHz |
| BF200 | N | 0 | 0 | 0 | 00 | 1 | geaarde basis: fT = 240 MHz |
| BF254 | N | 00 | 0 | 0 | 000 | 11 | geaarde emitter: fT = 260 MHz |
| BF257 | P | 00000 | 00 | 00 | 00 | 2 | geaarde emitter: fT = 90 MHz |
| BF494 | N | 0 | 0 | 0 | 000 | 11 | geaarde emitter: fT = 260 MHz |
| BFX34 | N | 000 | 00000 | 00 | 00 | 2 | fT = 70 MHz |
| BFX89 | N | 0 | 0 | 0 | 00 | 1 | geaarde emitter: fT = 1000 MHz |
| BFY90 | N | 0 | 0 | 0 | 00 | 1 | geaarde emitter: fT = 1000 MHz |
| BSX19 | N | 0 | 0000 | 0 | 000 | 2 | |
| BSX20 | N | 0 | 0000 | 0 | 000 | 2 | |
| BSX61 | N | 000 | 0000 | 00 | 000 | 2 | |
| HEP51 | P | 00 | 0000 | 00 | 000 | 1 | fT = 150 MHz |
| HEP53 | N | 00 | 0000 | 00 | 000 | 1 | fT = 200 MHz |
| HEP56 | N | 0 | 00 | 00 | 000 | 5 | fT = 750 MHz |
| MJE171 | P | 000 | 00000 | 00** | 00 | 9 | |
| MJE180 | N | 00 | 00000 | 00** | 00 | 9 | |
| MJE181 | N | 000 | 00000 | 00** | 00 | 9 | |
| MJE340 | N | 00000 | 0000 | 00** | 00 | 9 | |
| MPS A05 | N | 000 | 0000 | 00 | 00 | 13 | |
| MPS A06 | N | 0000 | 0000 | 00 | 00 | 13 | |
| MPS A09 | N | 0000 | 0 | 00 | 000 | 13 | |
| MPS A10 | N | 00 | 00 | 00 | 00 | 13 | |
| MPS A13 | N | 00 | 000 | 00 | 0000 | 13 | |
| MPS A16 | N | 00 | 00 | 00 | 0000 | 13 | |
| MPS A17 | N | 00 | 00 | 00 | 0000 | 13 | |
| MPS A18 | N | 000 | 000 | 00 | 0000 | 13 | |
| MPS A55 | P | 000 | 0000 | 0 | 00 | 13 | |
| MPS A56 | P | 0000 | 0000 | 0 | 00 | 13 | |
| MPS U01 | N | 00 | 00000 | 00* | 00 | 14 | |
| MPS U05 | N | 000 | 00000 | 00* | 00 | 14 | |
| MPS U56 | P | 0000 | 00000 | 00* | 00 | 14 | |
| MPS2926 | N | 0 | 00 | 00 | 00 | 13 | fT = 300 MHz |
| MPS3394 | N | 00 | 00 | 00 | 000 | 13 | |
| MPS3702 | P | 00 | 000 | 00 | 000 | 13 | fT = 100 MHz |
| MPS3706 | N | 0 | 0000 | 00 | 00 | 13 | |
| MPS6514 | N | 00 | 00 | 0 | 0000 | 13 | fT = 480 MHz |
| TIP29 | N | 00 | 0000 | 00** | 0 | 3 | |
| TIP30 | P | 00 | 0000 | 00** | 0 | 3 | |
| TIP31 | N | 00 | 00000 | 00*** | 0 | 3 | |
| TIP32 | P | 00 | 00000 | 00*** | 0 | 3 | |
| TIP140 | N | 000 | 00000 | 00*** | 0000 | 7 | Darlington |
| T1P142 | N | 00000 | 00000 | 00*** | 0000 | 7 | Darlington |
| TIP2955 | P | 000 | 00000 | 00*** | 0 | 3 | |
| TIP3055 | N | 000 | 00000 | 00*** | 0 | 3 | |
| TIP5530 | P | 000 | 00000 | 00*** | 0 | 3 | |
| 2N696 | N | 000 | 0000 | 00 | 0 | 2 | |
| 2N706 | N | 0 | 0 | 0 | 0 | 2 | |
| 2N914 | N | 0 | 0000 | 00 | 00 | 2 | |
| 2N1613 | N | 000 | 0000 | 00 | 00 | 2 | |
| 2N1711 | N | 000 | 0000 | 00 | 000 | 2 | |
| 2N1983 | N | 00 | 0000 | 00 | 000 | 2 | |
| 2N1984 | N | 00 | 0000 | 00 | 2 | ||
| 2N2219 | N | 00 | 0000 | 00 | 00 | 2 | |
| 2N2222 | N | 00 | 0000 | 00 | 00 | 2 | |
| 2N2925 | N | 00 | 00 | 0 | 0000 | 13 | |
| 2N2955 | P | 00 | 00 | 0 | 0 | 2 | ≠ MJE2955, TIP2955! |
| 2N3054 | N | 000 | 00000 | 00*** | 00 | 7 | |
| 2N3055 | N | 000 | 00000 | 00*** | 0 | 7 | |
| 2N3553 | N | 00 | 0000 | 00* | 0 | 2 | fT = 500 MHz |
| 2N3568 | N | 000 | 0000 | 0 | 000 | 13 | |
| 2N3638 | P | 00 | 0000 | 0 | 000 | 13 | |
| 2N3702 | P | 00 | 000 | 00 | 000 | 13 | |
| 2N3866 | N | 00 | 000 | 00* | 0 | 2 | fT = 700 MHz |
| 2N3904 | N | 00 | 000 | 0 | 00 | 13 | |
| 2N3905 | P | 00 | 000 | 00 | 000 | 13 | |
| 2N3906 | P | 00 | 000 | 00 | 000 | 13 | |
| 2N3907 | N | 000 | 0 | 0 | 000 | 13 | |
| 2N4123 | N | 00 | 000 | 0 | 00 | 13 | |
| 2N4124 | N | 00 | 000 | 0 | 000 | 13 | |
| 2N4126 | P | 00 | 000 | 0 | 000 | 13 | |
| 2N4401 | N | 00 | 0000 | 00 | 0 | 13 | |
| 2N4410 | N | 0000 | 000 | 00 | 000 | 13 | |
| 2N4427 | N | 0 | 000 | 00* | 0 | 2 | fT = 700 MHz |
| 2N5183 | N | 0 | 0000 | 00 | 000 | 2 |
