Printerkabel
| Gebruik | D25 | Centronics | |
|---|---|---|---|
| Strobe | 1 | -----> | 1 |
| Data0 | 2 | -----> | 2 |
| Data1 | 3 | -----> | 3 |
| Data2 | 4 | -----> | 4 |
| Data3 | 5 | -----> | 5 |
| Data4 | 6 | -----> | 6 |
| Data5 | 7 | -----> | 7 |
| Data6 | 8 | -----> | 8 |
| Data7 | 9 | -----> | 9 |
| Ack | 10 | <----- | 10 |
| Busy | 11 | <----- | 11 |
| Paper End | 12 | <----- | 12 |
| Select | 13 | <----- | 13 |
| Auto Feed | 14 | -----> | 14 |
| Error | 15 | <----- | 32 |
| Init | 16 | -----> | 31 |
| Sel In | 17 | -----> | 36 |
| Gnd | 18 | 19 | |
| Gnd | 19 | 20 | |
| Gnd | 20 | 21 | |
| Gnd | 21 | 22 | |
| Gnd | 22 | 23 | |
| Gnd | 23 | 24 | |
| Gnd | 24 | 25 | |
| Gnd | 25 | ------ | 26, 27, 28 |

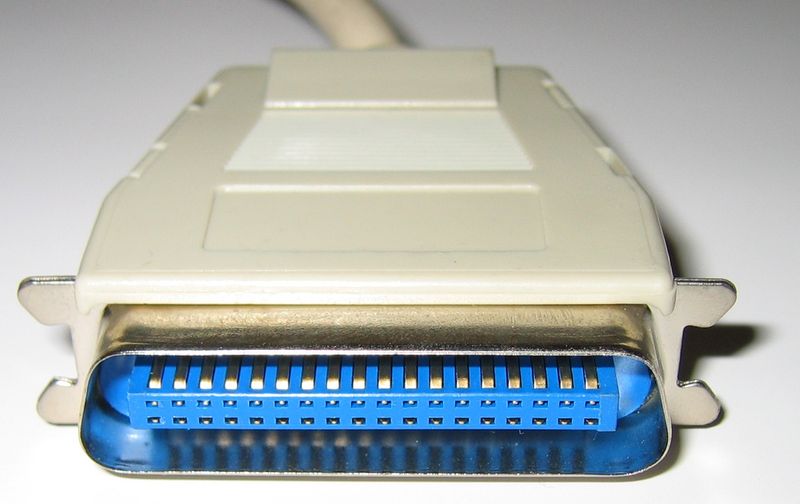

Centronics printer stekker
Moderne printers hebben USB stekkers en/of LAN aansluitingen. Soms is er ook nog de LPT poort aanwezig.
