Lunar DX on 144 Mc!

Home - Techniek - Electronica - Radiotechniek - Radio amateur bladen - QST - Lunar DX on 144 Mc!


W4AO and W3GKP bounce 2-meter signals off the moon.

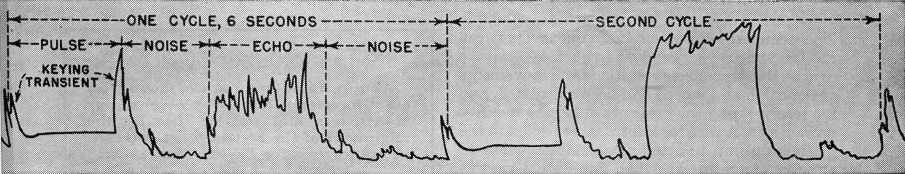

Listening to the wire recording from which the above graph was made, it doesn't sound like much; a one-second beep, an interval of receiver noise, then a wavering trailing bee-e-e-e-p barely discernible in the midst of the slightly musical rushing sound that is characteristic of high-selectivity reception. You wouldn't be impressed if you happened to hear it casually, but to Ross Bateman, W4AO, and Bill Smith, W3GKP, it was music of the sweetest sort; evidence that more years of thinking, figuring, building, rebuilding and testing were not in vain. An amateur signal had been sent to the moon and back, at last!

Bouncing signals off the moon is not new, of course. It was done on 110 Mc. by the Signal Corps back in 1946(1) and something approximating intelligence was sent from Cedar Rapids, Iowa, to Washington, D. C., on 400 Mc more recently,(2) using the moon as a reflector. These were high-power projects, however, and their slim margin of success indicated that lunar DX for amateurs was a long-chance proposition. It was an end that just might be achieved, but only after the most painstaking effort, if at all.

Graph

The best available information indicated that it would take the level amateur power limit, pushed to the last watt. An antenna gain of at least 20 db. was required, and a degree of receiver performance to tax the ingenuity of the best engineers in the business was called for. Obviously, a 144 Mc WAS, lunar style, was a long way off, but it was a challenge that a few enterprising and infinitely patient hams were bound to accept.

Pic 1

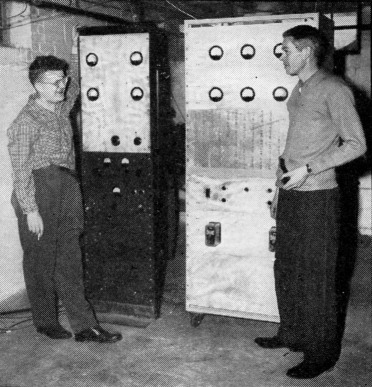

Ross Bateman, W4A0, left, and Bill Smith, W3GKP, smile happily over the success of Project Moonbeam, after three years of trying. The high-power stages of the 1-kw. 2-meter transmitter are in the left-hand rack, as are crystal-controlled converters for 144 and 50 Mc. The large cabinet houses power supplies, modulator and control circuits.

One such ham was Bill Smith, W3GKP, then of Silver Spring, Maryland. Smitty knew what he was about, and he went at the job with no illusions about aiming his beam at the rising moon some night and then sitting back to listen to the W6s. He knew the requirements, in a general way, and he felt sure that the trick could be turned, eventually. The first step was to find a co-worker, so that the burden of equipment development and construction could be shared. A ham with a kilowatt rig and a big beam for 144 Mc. would be a fine start. Several prospects were lined up, and early in 1950 a few transmitting tests were made, while W3GKP worked on his receiving gear, but none of the prospects had sufficiently good equipment to make reception possible at that stage of the game.

Other amateurs, among them W4AO, Falls Church, Va., had been working along similar lines. Learning of W3GKP's interest, Ross joined forces with Smitty, and Project Moonbeam was on its way in earnest. Ross brought to the operation the technical know-how and the enthusiasm and perseverance Smitty had been looking for, and he had a 2-meter rig capable of a full and efficient kilowatt, a 32-element array, a low-noise receiver and a quiet suburban location. After many evenings of discussion, planning and construction, the stage was set for a series of tests with a set-up that appeared to have some chance of succeeding.

The rig at W4AO was maintained on frequency precisely, and keyed in one-second pulses. The required separation in frequency between the transmitter and receiver frequencies (to take care of Doppler effects resulting from movements of the earth and moon) had been calculated, and the receiver frequency set with elaborate stability precautions. A wire recorder was connected to the receiver output, to catch as permanent evidence any sign of a returned signal. The system was put in operation whenever the moon was in the right place, and no minor considerations like eating or sleeping were allowed to interfere.

At long last, at 5:03 A.m. on July 15, 1950, came something that sounded like an echo. It was faint and indefinite, but it started at the right time and it sounded like the real thing. What was more important, it was caught on the wire recorder. It was just one tiny beep after a long series of transmitter pulses, but it was enough to keep enthusiasm going.

Workers of lesser stature might have called in the press and announced their results to the world, but Ross and Smitty wanted something more solid than a single faint and somewhat dubious return on which to rest their case. Copies of the recording were mailed out to a few interested parties who could be trusted to say nothing until given the word, and Moonbeam went on and on. (A wire copy of that first success has rested in the desk of QST's V.H.F. Editor for nearly three years.)

Test after test piled failure on failure, but still the beeps were sent. An infinitesimal improvement in receiver noise figure, another decibel of antenna gain, a correction of a degree of antenna aiming error, an improved method of "reading" signals inaudible in the noise; any or all of these might tip the balance. Methods that were tried and found wanting will not be recounted here, but they were many.

Moving to a new home location necessitated the dismantling of the receiving set-up at W3GKP, so Moonbeam moved its entire facilities to the basement at W4A0. In November, 1952, a huge stacked rhombic was erected and tested, and it showed a gratifying improvement over the 32-element array. A system had been devised to tie in transmitter and receiver frequencies together accurately. A new receiver front end brought the noise figure down under 4 dB.

Tests on November 30th and December 3rd brought no results, so a slight modification was made in the rhombic design, to radiate maximum signal at 2 degrees above the horizon, in readiness for the next round December 27th. There were some very faint returns this time, but nothing tangible on the 30th and 31st.

Pic 2

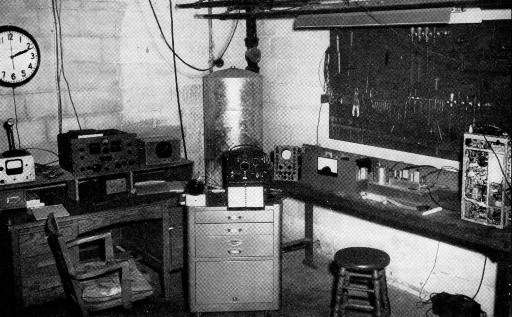

Part of the equipment used in Project Moonbeam, as it operates in the basement at W4A0, Falls Church, Va. At the control position is the Super-Pro receiver, flanked by microphone preamplifier and beam direction indicator. The rolling table, center, carries frequency-checking gear. On the workbench at the right are the frequency control units and exciter. The high-power stages of the transmitter are out of sight at the right, in racks that also house the crystal-controlled converters for the v.h.f. bands.

Meanwhile, the staff of Moonbeam had been augmented by the addition of Ted Tuckerman, W3LZD, of Dunmore, Penna., who erected a 30-wavelength rhombic array in time for tests in late January. The receiver bandwidth at W4A0 was shaved another notch for this try, too.

Ted arranged to listen for the ground-wave signal with his normal 2-meter array aimed at W4A0, and then switch to the moon rhombic to try for the echo. His low-noise crystal-controlled converter and communications receiver were equipped with a super-selective 50 kc i.f. system built by W3LCK. On January 23rd, this combination produced its first positive results, and a series of weak echoes was received at W3LZD, at a time when nothing was detected by the set-up at W4A0.

Tests the following afternoon produced nothing, but beginning at 1533 EST on the 27th, a whole series of echoes was recorded at W4A0, two cycles of which are reproduced at the start of this article. Success, at last, and in sufficient quantity and quality to provide irrefutable evidence!

The equipment used in this and earlier stages of Moonbeam will be described by W4A0 and W3GKP in a subsequent issue of QST. Now the question is, "Where do we go from here?" As Smitty puts it, "This is the end of Phase A - we've got an echo. Phase B will be to transmit intelligence to another station. Phase C will be to work somebody, two-way. Phase D will be to break the 2-meter record. Phases E, F well, can go on almost indefinitely. After three years we're just getting started!"

Notes

  1. Kaufman, "A DX record: To the moon and back," QST, May, 1946.
  2. Sulzer, Montgomery, and Gerke, "An U.H.F. moon relay," Proc. IRE, March, 1951, p. 361.
