# The 160-meter antenna dilemma

If you're not getting the top-band results you expected, you'll find these antenna tips of use.

It is always a pleasure to welcome newcomers to the "gentlemen's band," as 160 meters has been called for many years. But few have signals that rattle the walls in my shack. In fact, they are often barely readable, or at best an S unit or so above the noise threshold.

When first-timers give me a call to ask for a signal check, I always inquire about their antenna. "I'm using my 35-foot-high 75-meter dipole with a Transmatch" is one common response. Another is, "Antenna here is a 100-foot, end-fed wire about 15 feet above ground." When I hear 160-meter antenna descriptions of this type I say "ouch!" The majority of these newcomers are using barefoot transceivers, which at times must look into high values of SWR.

### The matter of height

We hams tend to think of height in terms of physical feet or meters, rather than with regard to wavelengths or fractions thereof above earth ground. Whereas a height of 50-60 feet may seem high above ground, it's very low in terms of wavelength at the lower frequencies. An ideal horizontal antenna height for working distant stations is ½ λ or greater above ground. This is relatively easy to achieve on, say, 20 meters (35 feet). But, for 3.5 MHz it is 141 feet, and at 1.8 MHz we need to have this ideal antenna 273 feet above ground! Not practical for most of us.

By way of example, a 160-meter dipole that is 35 feet above ground is equivalent, in terms of wavelength height, to a 10-meter dipole at about 2 feet above ground. None of us would consider erecting a 10-meter beam at 2 feet above ground!

### What happens at low height?

We can expect dreadful antenna efficiency when we use a 160-meter horizontal antenna at typical ham-antenna heights. Ground losses become high and the antenna has no directivity. In fact, the radiation is pretty much straight up, in the shape of a sphere. This can actually be very good for short-range QSOs at night, out to some 600 miles. Inverted-V antennas do somewhat better because they have a vertically polarized component (if the enclosed angle is between 90 and 110 degrees). They also have an omnidirectional radiation pattern. I prefer a 160-meter inverted V to a horizontal dipole at heights less than 100 feet. The feed impedance of a dipole at low height will be affected; a matching network at the antenna feed point may he required if you use coaxial cable for your transmission line. A dipole that is ½ λ high has a characteristic feed impedance of 75 ohms. This isn't so at other heights (for details, see The ARRL Antenna Book).

### An answer for the urban dweller

Most hams who live in metropolitan areas do not have sufficient property to erect a full-size 160-meter horizontal dipole. In fact, the urbanite may have difficulty accommodating a 160-meter inverted V. An old expression is, "If you can't go out, go up." Vertical antennas for top band are popular and practical. A full- size ¼-λ vertical for 1.9 MHz is 123 feet high. Not many hams are willing to go to that extreme, especially in the city! You can, however, erect a short vertical antenna with some form of top loading (coil and capacitance hat near the upper end). If you have a tower, you may elect to shunt feed it (with your HF beam antenna in place) and add some top loading. WIFB's Antenna Notebook and The ARRL Antenna Book describe methods for doing this.

A popular and effective antenna for 160 meters is the inverted L. It works well for local and DX communications if a ground-radial system is used with it. In fact, all ¼-λ antennas fed against ground require a radial system if losses are to be kept low. A couple of metal rods driven into the soil will not take the place of a radial system. Beware of this approach to an antenna ground. If the rods are at least 8 feet long and driven into the soil, however, the rods will provide a dc ground for yoar antenna and station.

An inverted-L antenna consists of ¼ λ of wire, shaped like an upside-down L (Fig 1). The greater the length of the vertical portion of the wire, the better the antenna will perform. The horizontal portion carries less current and does less radiating. So, the antenna radiation is predominantly vertical in polarization. This antenna has a fairly low radiation angle (typically 20-35° which makes it useful for all-around communications. A number of hams have earned their 160-meter DXCC while using simple inverted-L antennas.

Fig 1 - Example of a 1/4-λ inverted-L antenna. Dimension H should be as high as practicable for best performance. The support poles may be metal or wood, or they can be trees. Illustration B shows a simple matching network that works very well with inverted-L antennas. The capacitor can be motor-driven from the ham shack to provide a 1:1 SWR across the band. A single value of inductance normally permits full band coverage with C1. Once the tap is selected, no further adjustments are required for full 160-meter coverage.

The major trade-off with verticals is that they pick up far more noise than do horizontal antennas. This is because most man-made noise is vertically polarized. Also, you may find that you have a "dead zone" with your vertical antenna. There will be times when signals out to a couple of hundred miles are very weak. Your signal will also be weak at the other ham's location, since it is skipping over his area. This does not always happen; it depends on propagation conditions at a given time.

Short verticals (30 feet long or greater) can be effective, too. You may want to make one from aluminum tubing or a telescoping steel mast. The shorter the vertical, the lower the antenna efficiency - unless you add many more radials to your ground system. Likewise as you add more inductive loading. But a short loaded vertical is often more effective for working distant stations than a full-size horizontal antenna near ground. I had good luck when I lived in Detroit during the 1950s while using a 16-foot helically wound vertical antenna on 160 meters. It was wound uniformly with ½ λ of no. 14 insulated wire. A 16-foot wooden hand rail from the lumberyard served as the coil form after I applied two coats of spar varnish. An aluminum pie plate was used at the tip of the helix to provide top capacitance and to prevent corona discharge (resulting from the extremely high voltage at the antenna's end) during transmit periods. One-half λ of wire results in ¼-λ resonance (approximately) when winding helical antennas of this type.

### The ground system

Don't worry about ruining your lawn with buried radials. A lawn-edging tool can be used to cut the slits for the wire. The lawn will heal in a month or two, and no one will know about the copper screen you have under the grass!

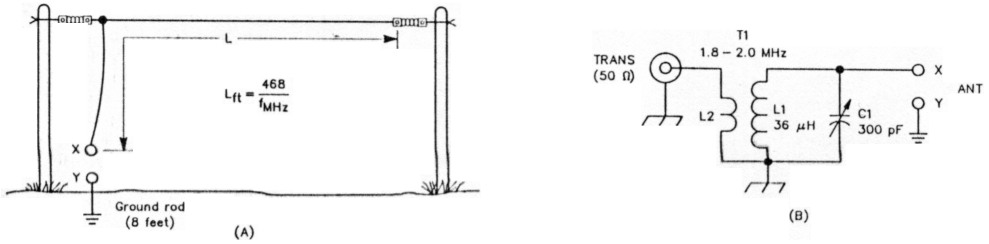

Fig 2 - A ½-λ version of the antenna in Fig 1. This antenna is similar to one used at W4ZCB. L1 may have a relay-selected tap to permit operation on 80 meters as well. L1 and C1 are outside the house at the antenna food point in a weatherproof box. C1 is motor driven and should have wide spacing or be a vacuum variable capacitor. Illustration B shows a suitable matching network.

### Other 160-meter antennas

Some amateurs obtain good performance with end-fed ½-λ wire antennas. Results depend on the height of the wire above ground. An antenna erected over poor ground (deep shale, granite or desert sand) may appear to be many feet higher over ground than it is. W4ZCB is situated on a small mountain in North Carolina. His end-fed wire for 160 meters (Fig 2) is only 50-60 feet above the surface of the earth. His signal in Michigan is always very loud. I expect that there's a lot of rock below his property. His antenna is tuned remotely and works equally well on 75 meters (1 λ overall).

I use a full-λ horizontal loop for 1.9 MHz. The corners arc only 50 feet above ground, but I live over very dry, sandy soil. I suspect that the virtual (or effective) antenna height is considerably greater than 50 feet. I feed this loop at one corner with 450-ohm ladder line. It works exceptionally well on all of the bands from 160 throughh 10 meters with the help of a 4:1 balun transformer and my Transmatch. Loops are inherently quiet receiving antennas. My noise level is often S0 to S1, whereas the reading was generally S3 to S6 when I was using an inverted L. Lee, K8CLI, in Loveland, Ohio also uses a full-λ horizontal 160-meter loop at approximately 50 feet. His signal is always among the loudest I hear on 1.9 MHz.

### Summary remarks

I can't stress strongly enough that we need to take our 160-meter antennas seriously if we are to enjoy the benefits of this wonderful band. A hunk of wire a few feet above ground will surely deprive you of the fun that awaits you on 160 meters. If the other guy has to struggle to copy your signal he may choose to sign off with you. A little thought and effort are required when you erect your first top-band anten na. Don't settle for mediocrity - it's better to apply the same tender loving care you do when erecting an antenna for 40 or 20 meters. Although I do not advocate using amplifiers when they aren't needed, I suggest that you consider acquiring one for your 160-meter work if you intend to chase DX and have a consistently good signal. Amplifiers provide those extra decibels that are often needed to break through the noise. They are a definite asset when band conditions arc poor, which is not atypical on 160 meters.

Finally, every decibel is important. I urge you to make an effort to match your feed line to your 160-meter antenna and to match your end-fed wire to the transmitter.

W1FB, Doug DeMaw.
