DKIM

Spammers often try to impersonate third-party domains by spoofing them. The more well-known and trusted the party they impersonate, the greater the chance that a recipient will read the spam.

In addition to the necessary measures such as SPF control, you can use DKIM. DKIM is used to check the validity of the sender of emails. When sending emails, a digital signature is sent with DKIM. This is checked by means of the key that is included in the DKIM record.

DKIM stands for DomainKeys Identified Mail.

In this tutorial we show you how to sign outgoing mail with DKIM on a VPS with Postfix. You can have incoming mail automatically scanned for DKIM with Spamassassin.

Installation

# dnf install opendkim opendkim-tools

Configuration

# cd /etc
# vi opendkim.conf
Mode     sv
ReportAddress   "Example.com Postmaster" <postmaster@example.com>
Selector        key
#KeyFile /etc/opendkim/keys/default.private
KeyTable		refile:/etc/opendkim/KeyTable
SigningTable  		refile:/etc/opendkim/SigningTable
ExternalIgnoreList	refile:/etc/opendkim/TrustedHosts
InternalHosts		refile:/etc/opendkim/TrustedHosts
Socket  inet:8891@localhost

Now we add our domains to the key-table. We have to enter for each one an line. Add to TrustedHosts the IPv6 GUA and the IPv4 address.

# cd opendkim
# vi KeyTable
mail._domainkey.example.com example.com:mail:/etc/opendkim/keys/example.com/mail.private
# vi SigningTable
*@example.com mail._domainkey.example.com
# vi TrustedHosts
197........
2000:......
*.example.com

Now we create the key.

# cd keys
# mkdir example.com
# cd example.com
# opendkim-genkey -s mail -d example.com
# ll
total 8
-rw-------. 1 root root 916 Sep 18 22:29 mail.private
-rw-------. 1 root root 310 Sep 18 22:29 mail.txt
# chown opendkim:opendkim /etc/opendkim/keys/ -R
# usermod -a -G opendkim postfix

You include the public key in the DNS records of the domains that send mail via your mail server, see the next step.

For each domain you send mail with from your VPS, you need a TXT record that contains the public key. In the previous step, you created a separate .key file containing your public key. Print the contents of this file with the command:

# cat /etc/opendkim/keys/example.com/mail.txt
Name: mail._domainkey.example.com.
Text: "v=DKIM1; k=rsa; p=MIGfMA0GCSqGSIb3DQEBAQUAA4GNADCBiQKBgQC5N3lnvvrYgPCRSoqn+awTpE+iGYcKBPpo8HHbcFfCIIV10....."

This must be accessable for the user that manage the public DNS settings.

Configuration in your local DNS server

When you send mail between users in the same domain dkim can not be tested. So you have to add at the end of the file for your named domain:

# cd /var/named/dynamic
# vi example.com
$TTL 300
mail._domainkey         TXT     "v=DKIM1; k=rsa; p==MIGfMA0GCSqGSIb3DQEBAQUAA4GNADCBiQK......."
# systemctl restart named

Testing local DNS

Now we can test is the DNS returns a valid response:

opendkim-testkey -d robkalmeijer.nl -s mail -vvv
opendkim-testkey: using default configfile /etc/opendkim.conf
opendkim-testkey: checking key 'mail._domainkey.example.com'
opendkim-testkey: key not secure
opendkim-testkey: key OK

"opendkim-testkey: key not secure" means the key is not received via DNSSEC. The test used the local DNS server which didn't use DNSSEC.

Configuration in your public DNS servers

For each domain you have to add the DKIM settings.

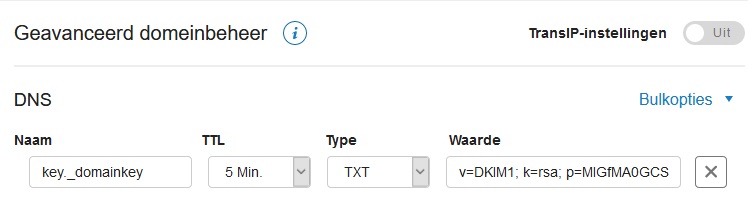

Next, create a TXT record in the DNS settings of each domain you send mail for on your VPS using the syntax below.

DNS settings

Save the settings. This can take some time to implement.

Testing

You can then test the DKIM key with the command:

# opendkim-testkey -d example.com -s mail -vvv

This will fail if you haven't set the txt record in the local DNS server.

Linking dkim to postfix

We have to add the dkim settings in postfix. We have to add the milter section.

# cd /etc/postfix/
# vi /main.cf
# Milter configuration for DKIM
milter_default_action = accept
milter_protocol = 6
smtpd_milters = inet:127.0.0.1:8891
non_smtpd_milters = $smtpd_milters
# systemctl restart postfix

Starting DKIM

# systemctl start opendkim
# systemctl enable opendkim

Testing dkim

We need to send an email to another owned e-mail address that you can use to look at the source.

DKIM-Filter: OpenDKIM Filter v2.11.0 server5.robkalmeijer.nl 5775610200BC
DKIM-Signature: v=1; a=rsa-sha256; c=relaxed/relaxed; d=robkalmeijer.nl;
	s=mail; t=1726753947;
	bh=LTP0qq62X9I/BzkTSx/GaNUeWCR7QdQ7PxD0+k4AMDQ=;
	h=Subject:Date:From:From;
	b=GvD4PsMQzWN4beDQgSNvGFPJPua7y6gjQwA3YDfL6EmlDrPQ5wool0k/m409gHaNH
	DkZi4vmyYoPeS6gXG4j3krqcEXsLgprByATmmxw+6kqekt7KWEt8fT8M5oeMwiuGI3
	frleXlroGv9UdG3L9aJPTZS4hnuX4jxuYcrZcIOE=
